Black-Box and White-Box Testing

Software testing methodologies are broadly categorized based on the tester’s knowledge of the system’s internal structure. Black-Box Testing and White-Box Testing represent two fundamental approaches, each with distinct goals, techniques, and applications. Understanding these differences is crucial for selecting the appropriate testing strategy to thoroughly validate software functionality and ensure its internal integrity. These testing types form the backbone of a comprehensive quality assurance process, identifying defects from different perspectives.

White-Box Testing

White-Box Testing, also known as Structural Testing, Clear Box Testing, Glass Box Testing, or Open Box Testing, is a testing method that examines the internal structure, design, and implementation of a software system. In this approach, the tester has full knowledge of the source code, internal logic, and architecture of the application being tested.

Purpose of White-Box Testing

The main goal of white-box testing is to:

Verify the internal workings of an application.
Ensure that all internal logic paths are exercised.
Check the flow of data through the code.
Uncover hidden errors and vulnerabilities within the code itself.

Key Types of White-Box Testing

White-Box testing encompasses several specific types aimed at different aspects of the code’s internal structure:

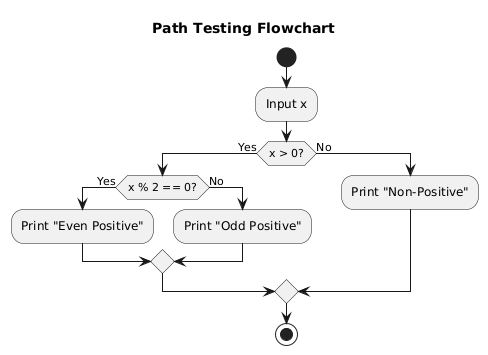

Path Testing: This type of testing ensures that every independent path within a module’s code is executed at least once. It aims for complete code coverage based on the logical paths.
Input/Output Validation Testing: This focuses on testing the various inputs that a user provides to the software and checking the corresponding outputs generated by the internal logic. It ensures robust handling of both valid and invalid inputs.
Security Testing: In the context of white-box, this involves examining the source code to identify potential security vulnerabilities, buffer overflows, insecure coding practices, and other weaknesses that could be exploited.
Loop Testing: This specifically evaluates the correctness of program loops (e.g., for, while loops). It tests loops for zero iterations, one iteration, multiple iterations, and boundary conditions (maximum iterations) to ensure their proper behavior.
Data Flow Testing: This analyzes the flow of data variables through the program, checking for correct initialization, usage, and destruction of data, and identifying anomalies like unused variables or undefined variables.

White-Box Testing Techniques

To achieve thorough coverage in white-box testing, various code coverage techniques are employed:

Statement Coverage: This technique aims to execute every statement in the source code at least once. It is a basic level of coverage, ensuring that no line of code is left untraversed by a test.
Branch Coverage (Decision Coverage): This ensures that every branch (e.g., if-else conditions, switch cases) in the code is executed, covering both the true and false outcomes of all decision points.
Condition Coverage: This technique tests all individual Boolean sub-expressions within a compound condition to ensure each possible outcome (true/false) of each sub-expression is exercised.
Multiple Condition Coverage: A more stringent form of condition coverage that requires testing all possible combinations of conditions within a decision.
Loop Coverage: This technique involves testing loops with different numbers of iterations: zero iterations, one iteration, a typical number of iterations, and the maximum number of iterations allowed.

Advantages of White-Box Testing

Thorough Code Coverage: Provides a high level of code coverage, ensuring that almost all paths and statements in the code are tested.
Early Bug Detection: Helps in identifying defects, vulnerabilities, and inefficiencies in the code at an early stage of development.
Optimized Code: Can lead to the optimization of code by identifying redundant or inefficient sections.
Root Cause Analysis: Easier to pinpoint the exact location and cause of a defect once it’s identified.

Disadvantages of White-Box Testing

Requires Programming Knowledge: Testers must have in-depth knowledge of the programming language, internal logic, and code structure.
Time-Consuming and Complex: Can be very time-consuming and complex for large and intricate software systems.
High Cost: Due to the specialized skills and time required, it can be more expensive.
Potential for Missing Functionality Gaps: While it tests how the software works, it may not effectively reveal missing functionalities or gaps in requirements that an end-user might experience.

Black-Box Testing

Black-Box Testing, also known as Functional Testing, Behavioral Testing, or Closed Box Testing, is a testing methodology where the tester has no knowledge of the internal code structure, design, or implementation of the software. Instead, the tester interacts with the software solely through its external interfaces, focusing on the software’s functionality and its compliance with specified requirements.

Purpose of Black-Box Testing

The primary goals of black-box testing include:

Verifying that the software meets its functional and non-functional requirements from an end-user perspective.
Discovering defects in the software’s behavior without concern for the underlying code.
Validating the system against user expectations and business needs.

Key Types of Black-Box Testing

Black-box testing encompasses various types, often categorized into functional and non-functional aspects:

Functional Testing

This verifies that the specific features and functions of the software operate correctly according to the requirements.

Equivalence Partitioning: Dividing input data into partitions where all data in a partition are expected to behave the same.
Boundary Value Analysis: Testing values at the boundaries of valid and invalid input ranges.
Decision Table Testing: Used for systems with complex business rules, representing conditions and actions in a tabular format.
State Transition Testing: Testing the system’s behavior when it moves between different states in response to events.
Use Case Testing: Deriving test cases from user use cases to ensure typical user interactions work correctly.

Non-Functional Testing

This evaluates aspects of the software that are not directly related to its specific functions but are crucial for its quality and user experience.

Performance Testing: Evaluates the speed, responsiveness, stability, and scalability of the software under various workload conditions. This includes:
- Load Testing: Assessing system behavior under expected user load.
- Stress Testing: Determining system robustness under extreme or abnormal loads.
Usability Testing: Focuses on how easy the software is to learn, operate, and use for its target audience. It assesses user-friendliness, efficiency, and satisfaction.
Compatibility Testing: Ensures that the software functions correctly across different hardware, software, network environments, browsers, and operating systems.
Security Testing: From a black-box perspective, this involves trying to exploit vulnerabilities without access to source code, simulating an external attacker. This tests authentication, authorization, data integrity, and privacy.

Advantages of Black-Box Testing

No Programming Knowledge Required: Testers do not need to understand the internal code, making it accessible to a wider range of testers, including business analysts and end-users.
User Perspective: Tests are conducted from an end-user’s point of view, helping to identify issues that impact user experience.
Faster Test Case Creation: Test cases can often be designed based on requirements without waiting for code implementation.
Detects Discrepancies: Effective in finding discrepancies between requirements and actual software behavior.

Disadvantages of Black-Box Testing

Limited Code Coverage: Since the internal structure is unknown, there’s no guarantee that all code paths or functionalities are exercised, potentially leaving some bugs undiscovered.
Blind Spots: Certain types of defects, especially those related to internal logic or performance bottlenecks, might be missed.
Inefficient for Complex Logic: May be less efficient for testing highly complex internal algorithms without knowing their structure.
